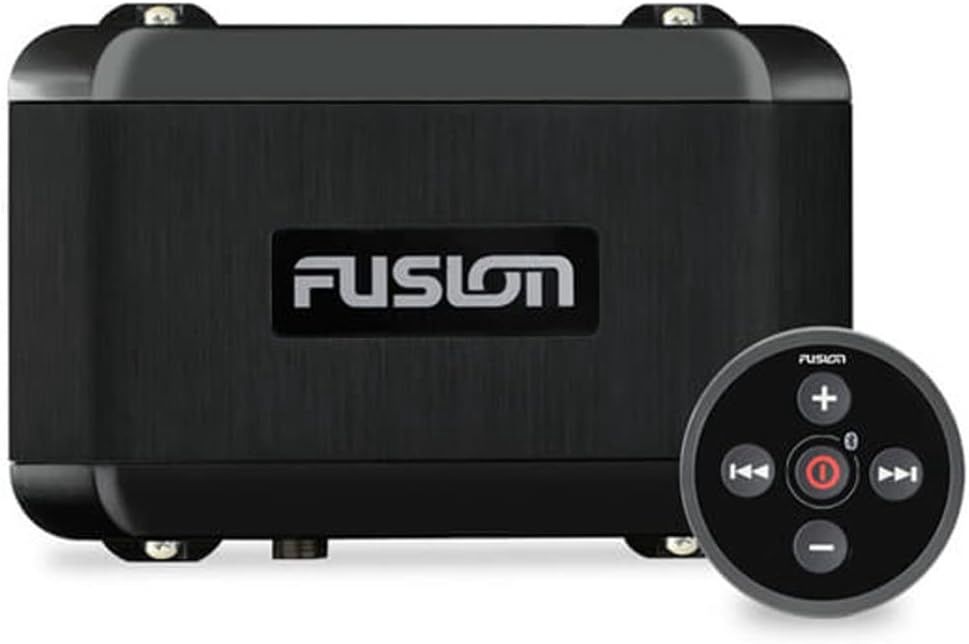

Fusion MS-BB100 Black Box
SKU 075375914986
$309.99
Sold out
Save this product for later
Fusion MS-BB100 Black Box
Product Details
UPC: 075375914986
Brand: FUSION
There is no need to compromise on quality audio entertainment due to limited helm space with the value packed Fusion MS-BB100 compact black box entertainment solution.
General |
|
| DIMENSION | Black Box: 6.1" x 3.7" x 2.63" (155 x 94 x 60 mm) Remote: 2.56" x 2.56" x 2.13" (65 x 65 x 54 mm) |
|---|---|
| WEIGHT |
1.23 lbs (560 g) |
| WATER RATING | Black Box: IPX3 (when properly installed) Wired Remote: IPX7 (front panel only, when properly installed) |
| OPERATING TEMPERATURE | 32° to 122° F (0° to 50° C) |
| CURRENT (MAX) | 15 A |
Networking |
|
| NMEA 2000® LEN | 1 (50 mA) |
|---|---|
| BLUETOOTH® WIRELESS RANGE | up to 30 ft |
| ANT® WIRELESS RANGE | Up to 10 ft |
| WIRELESS FREQUENCIES/PROTOCOLS | BLUETOOTH®: 2.4 GHz @ +1.9 dBm nominal ANT®: 2.4 GHz @ +1.9 dBm nominal |
Audio |
|
| AMPLIFIER | Class-AB (4 ohm) |
|---|---|
Electrical Features |
|
| POWER INPUT | 10.8 - 16 VDC |
|---|---|
| COMPASS-SAFE DISTANCE | 5.9" (150 mm) |
Stereo Features |
|
| PEAK POWER | 200 watts |
|---|---|
| RATED POWER OUTPUT (4 OHM) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| FUSION-LINK™ CONTROL | yes (MFD, smart device and Garmin watch) |
| MULTI-ZONE™ TECHNOLOGY | 2 zones |
| BLUETOOTH® WIRELESS TECHNOLOGY | |
| ANT® WIRELESS TECHNOLOGY | |
| DAB+ READY | |
| SUPPORTS NRX WIRED REMOTE | |
| SOFTWARE UPDATES | USB |
| WARRANTY | 1year |
Sources |
|
| SUPPORTED SOURCES |
AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x1, AOA DAB+ ready (available in Europe and Australia only) |
|---|---|
Connections |
|
| AUXILIARY INPUTS (RCA) | 1 |
|---|---|
| NMEA 2000® PORTS | 1 |
| USB 2.0 PORTS | 1 |
| AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) | 1 |
| SPEAKER CONNECTIONS | 4 (2 zone amplified) |
| RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) | 2 zones (requires external amplification) |
| LINE OUT | 2 (L + R per zone, requires external amplification) |
| SUBWOOFER OUT | Zone 1 (mono output, requires external amplification) |
